LUTZE Motor, VFD, Servo and Feedback Cables

Flexible Cable Solutions for Demanding Applications

LUTZE offers a variety of motor, servo and feedback cables to address the specific requirements of motor and VFD applications. The product range consists of flexible and high flexing cables for system specific as well as for universal applications. Advantageous features are improved electrical characteristics such as low capacitance and high impedance.

Standard Motor Cables

For any standard motor supply application where shielding is not required, Lutze recommends the use of LUTZE SILFLEX® Tray-ER TPE, unshielded cables with PVC/Nylon insulation. These cables are available in sizes up to 4/0 and offer superior flexibility paired with ruggedness due to the premium TPE jacket.

For any direct, reversing or soft starter application, Lutze recommends their SILFLEX® M (C) MOTOR PVC, shielded cables with PVC/Nylon insulation. These cables offer the ability to be installed within and outside the cable tray thanks to the TC-ER and MTW ratings in accordance with NEC article 336.

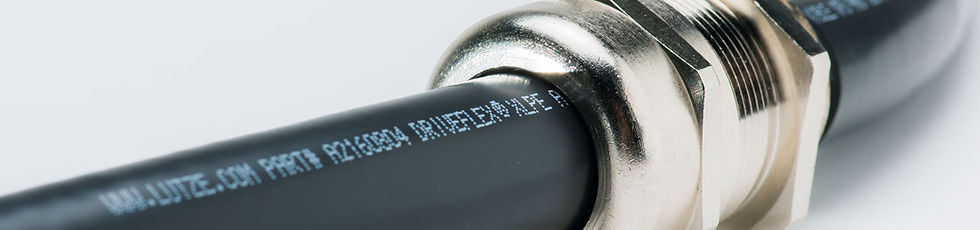

DRIVEFLEX® VFD Cables

For any motor supply application involving a Variable Frequency Drive, LUTZE recommends their DRIVEFLEX® cables with XLPE insulation. These cables have very low capacitance, high impedance and high voltage breakthrough resistance. This design is the superior choice for long cable runs with pulse width modulation (PWM) drives creating high voltage spikes. These cables are UL listed Flexible Motor Supply / Flexible VFD Servo Cable and TC-ER Power Tray cables.

Advantages:

• Thermoset insulation designed to cope with power distortions in VFD applications

• UL listed type "Flexible VFD Servo Cable, Flexible Motor Supply Cable"

• Superior electrical values for VFD applications

• Flexible for easy routing and installation

Linear and Mixed Motion

For any motor supply application involving light to moderate linear motion or torsional stress, LUTZE recommends their MOTIONFLEX® M (C) TPE with XLPE insulation. These shielded cables offer a rugged solution for installation in drag chains and in light duty robotic applications. These cables have been tested to surpass 5 million linear and 2 million torsional cycles.

For motor applications involving continuous linear motion, LUTZE recommends their SUPERFLEX® Plus M. These cables are made with an abrasion resistant PUR jacket specifically designed for the harsh physical conditions of constant linear motion and are rated for 20 million cycles.

Power-Flo Technologies is proud to partner with LUTZE, an experienced specialist in automation technology, with solutions for flexible and high flexing cables, cable assemblies, interfaces, current control and cabinet wiring. With a comprehensive range of cables tailored for standard motors, VFDs, and linear or mixed motion applications, LUTZE ensures reliable performance, superior flexibility, and long-lasting durability across diverse industrial environments. By combining advanced insulation, shielding options, and rugged construction, LUTZE cables provide engineers and installers with solutions that meet both electrical and mechanical demands, making them the ideal choice for efficient and safe motor and drive system installations.
